KCW Casters

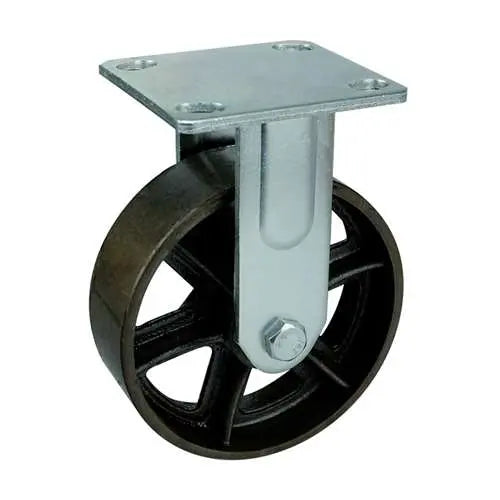

6" Inch Caster 617 lbs Fixed Cast iron Top Plate

6" Inch Caster 617 lbs Fixed Cast iron Top Plate

Regular price $14.64 USD
Regular price $18.30 USD Sale price $14.64 USD
Sale Sold out
SKU: 6inch-Caster-034
6" Inch Caster 617 lbs Fixed Cast iron Top Plate
  • Item Name: 6inch-Caster-034
  • Wheel Diameter: 150mm
  • Wheel Width: 50mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 193mm
  • Overall Height Inch: 7.598"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Cast iron
  • Tire: Cast iron
  • Bearing type: Roller bearing
  • Load Capacity: 617 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • Mounting the 6inch-Caster-034 Wheel Caster can make your life easier, push or pull your new project on wheels. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The overall height of the caster is 193mm or 7.598" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Rolling with a wheel core material of Cast iron and a Cast iron tire rolled over Roller bearing. Bearing in mind that every caster wheel has the load capacity of 617 lb with a Fixed type. The temperature range is -40 to 180 F. Buy the 6inch-Caster-034 now, just add the quantity to basket and click on Checkout.
