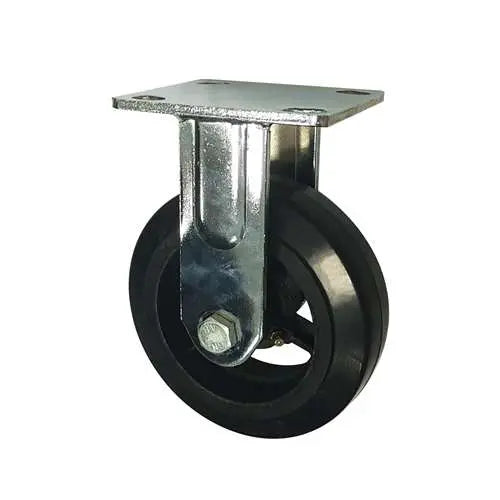

6" Inch Caster 617 lbs Fixed Rubber Top Plate

Whatever you are building needed to be on wheels, here come the 6inch-Caster-030. Diameter of the caster wheel is a metric standard 150mm that is equal to 5.906" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 195mm = 7.677" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Low drag was achieved by a Rubber core on a Rubber tire spinning freely with a Roller bearing. Bearing in mind that every caster wheel has the load capacity of 617 lb with a Fixed type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Caster-030 in order to have it :).
