KCW Casters

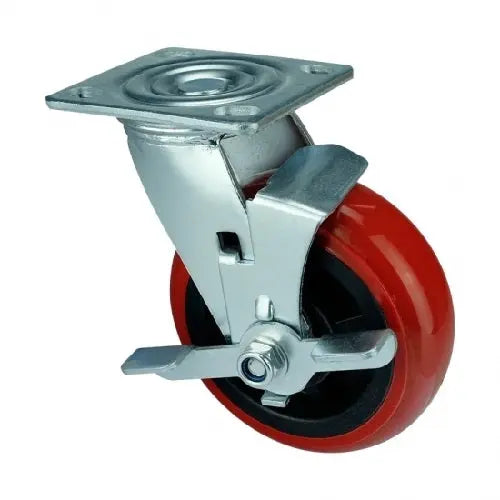

6" Inch Caster 617 lbs Side Locking Polyurethane Top Plate

6" Inch Caster 617 lbs Side Locking Polyurethane Top Plate

Regular price $21.74 USD
Regular price Sale price $21.74 USD
Sale Sold out
SKU: 6inch-Lock-Caster-002
6" Inch Caster 617 lbs Side brake Polyurethane Top Plate
  • Item Name: 6inch-Lock-Caster-002
  • Wheel Diameter: 150mm
  • Wheel Width: 50mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 195mm
  • Overall Height Inch: 7.677"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Polyurethane
  • Tire: Polyurethane
  • Bearing type: Double ball beaing
  • Load Capacity: 617 lb
  • Mounting: Side Locking
  • Temperature Range: -40 to 180 F

  • Mounting the 6inch-Lock-Caster-002 Wheel Caster can make your life easier, push or pull your new project on wheels. Diameter of the caster wheel is a metric standard 150mm that is equal to 5.906" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The Caster with the wheel from end to end is 195mm = 7.677" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Rolling with a wheel core material of Polyurethane and a Polyurethane tire rolled over Double ball beaing. Each caster will carry the load of 617 lb and is Side Locking type. The temperature range is -40 to 180 F. Remember, you will have to buy the 6inch-Lock-Caster-002 in order to have it :).
