KCW Casters

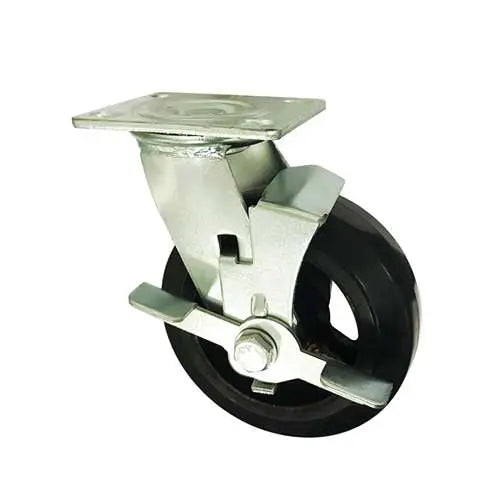

6" Inch Caster 617 lbs Side Locking Rubber Top Plate

6" Inch Caster 617 lbs Side Locking Rubber Top Plate

Regular price $17.39 USD
Regular price Sale price $17.39 USD
Sale Sold out
SKU: 6inch-Lock-Caster-005
6" Inch Caster 617 lbs Side brake Rubber Top Plate
  • Item Name: 6inch-Lock-Caster-005
  • Wheel Diameter: 150mm
  • Wheel Width: 50mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 195mm
  • Overall Height Inch: 7.677"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Rubber
  • Tire: Rubber
  • Bearing type: Roller bearing
  • Load Capacity: 617 lb
  • Mounting: Side Locking
  • Temperature Range: -40 to 180 F

  • Wheel casters like the 6inch-Lock-Caster-005 are used to roll your built machine or equipment back and forth. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The overall height of the caster is 195mm or 7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The caster core is made of Rubber and has a Rubber tire with a low friction Roller bearing. Bearing in mind that every caster wheel has the load capacity of 617 lb with a Side Locking type. The temperature range is -40 to 180 F. Enjoy our 6inch-Lock-Caster-005, we wish all the best in your project.
