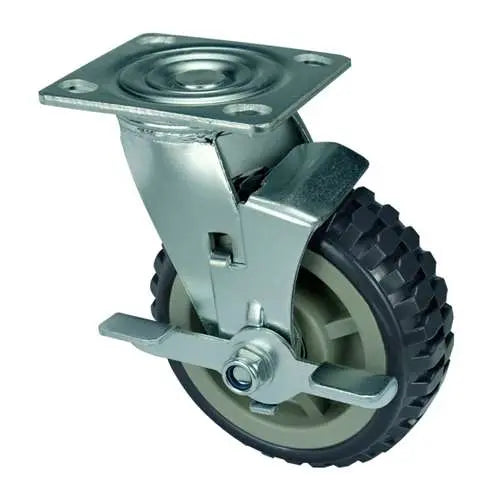

6" Inch Caster 617 lbs Swivel and Center Locking Polypropylene core and Polyurethane Top Plate

6" Inch Caster 617 lbs Swivel and Center Brake Polypropylene core and Polyurethane Top Plate

Item Name: 6inch-Lock-Swivel-Caster-007

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 195mm

Overall Height Inch: 7.677"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polypropylene core and Polyurethane

Tire: Polypropylene core and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 617 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

Wheel casters like the 6inch-Lock-Swivel-Caster-007 are used to roll your built machine or equipment back and forth. This wheel caster has a wheel diameter of 150mm or 5.906" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 195mm/7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The caster core is made of Polypropylene core and Polyurethane and has a Polypropylene core and Polyurethane tire with a low friction Double ball beaing. Each caster will carry the load of 617 lb and is Swivel and Center Locking type. Temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Lock-Swivel-Caster-007 in order to have it :).
