KCW Casters

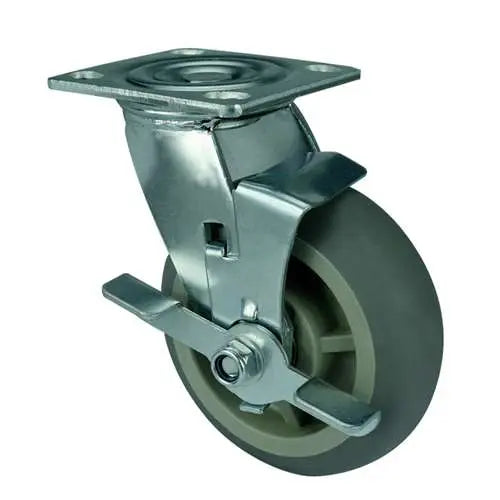

6" Inch Caster 617 lbs Swivel and Center Locking Polypropylene core and Thermoplastic Rubber Top Plate

6" Inch Caster 617 lbs Swivel and Center Locking Polypropylene core and Thermoplastic Rubber Top Plate

Regular price $20.82 USD
Regular price Sale price $20.82 USD
Sale Sold out
SKU: 6inch-Lock-Swivel-Caster-006
6" Inch Caster 617 lbs Swivel and Center Brake Polypropylene core and Thermoplastic Rubber Top Plate
  • Item Name: 6inch-Lock-Swivel-Caster-006
  • Wheel Diameter: 150mm
  • Wheel Width: 50mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 195mm
  • Overall Height Inch: 7.677"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Polypropylene core and Thermoplastic Rubber
  • Tire: Polypropylene core and Thermoplastic Rubber
  • Bearing type: Double ball beaing
  • Load Capacity: 617 lb
  • Mounting: Swivel and Center Locking
  • Temperature Range: -40 to 180 F

  • Mounting 6inch-Lock-Swivel-Caster-006 is the solution of making your project to move around by pushing. Diameter of the caster wheel is a metric standard 150mm that is equal to 5.906" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 195mm = 7.677" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polypropylene core and Thermoplastic Rubber tire to roll easily with a core made of Polypropylene core and Thermoplastic Rubber. Bearing in mind that every caster wheel has the load capacity of 617 lb with a Swivel and Center Locking type. The temperature range is -40 to 180 F. Buy the 6inch-Lock-Swivel-Caster-006 now, just add the quantity to basket and click on Checkout.
