KCW Casters

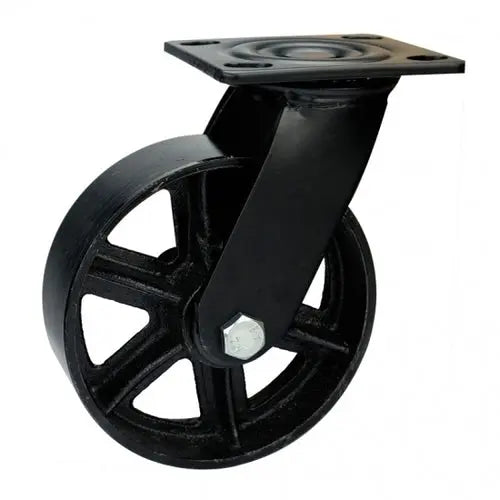

6" Inch Caster 617 lbs Swivel Black Cast iron Top Plate

6" Inch Caster 617 lbs Swivel Black Cast iron Top Plate

Regular price $16.92 USD
Regular price Sale price $16.92 USD
Sale Sold out
SKU: 6inch-Swivel-Caster-031
6" Inch Caster 617 lbs Swivel Black Cast iron Top Plate
  • Item Name: 6inch-Swivel-Caster-031
  • Wheel Diameter: 150mm
  • Wheel Width: 50mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 193mm
  • Overall Height Inch: 7.598"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Black Cast iron
  • Tire: Black Cast iron
  • Bearing type: Roller bearing
  • Load Capacity: 617 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Imagine your office chair has no wheel caster, you would be carrying it right and left, install 6inch-Swivel-Caster-031 instead. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The overall height of the caster is 193mm or 7.598" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The caster core is made of Black Cast iron and has a Black Cast iron tire with a low friction Roller bearing. Bearing in mind that every caster wheel has the load capacity of 617 lb with a Swivel type. Last and not least the temperature range = -40 to 180 F. Buy the 6inch-Swivel-Caster-031 now, just add the quantity to basket and click on Checkout.
