KCW Casters

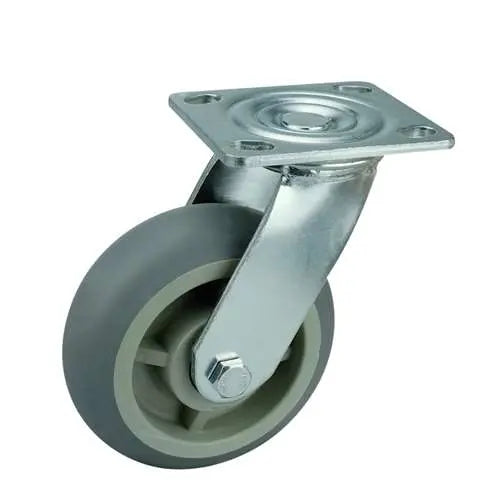

6" Inch Caster 617 lbs Swivel Polypropylene core and Thermoplastic Rubber Top Plate

6" Inch Caster 617 lbs Swivel Polypropylene core and Thermoplastic Rubber Top Plate

Regular price $18.18 USD
Regular price Sale price $18.18 USD
Sale Sold out
SKU: 6inch-Swivel-Caster-015
6" Inch Caster 617 lbs Swivel Polypropylene core and Thermoplastic Rubber Top Plate
  • Item Name: 6inch-Swivel-Caster-015
  • Wheel Diameter: 150mm
  • Wheel Width: 50mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 195mm
  • Overall Height Inch: 7.677"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Polypropylene core and Thermoplastic Rubber
  • Tire: Polypropylene core and Thermoplastic Rubber
  • Bearing type: Double ball beaing
  • Load Capacity: 617 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • 6inch-Swivel-Caster-015 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 195mm or 7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Low drag was achieved by a Polypropylene core and Thermoplastic Rubber core on a Polypropylene core and Thermoplastic Rubber tire spinning freely with a Double ball beaing. Each caster will carry the load of 617 lb and is Swivel type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Swivel-Caster-015 in order to have it :).
