KCW Casters

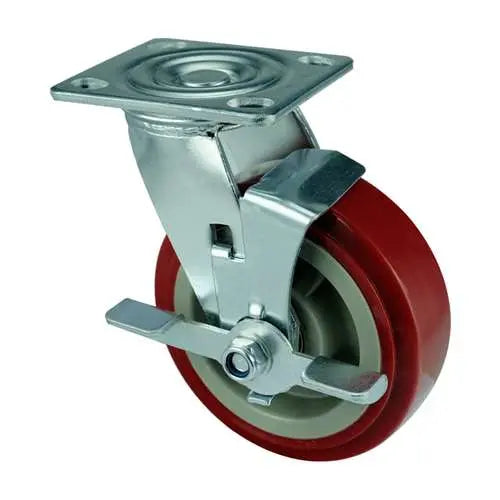

6" Inch Caster 617 lbs Swivel Polyvinyl Chloride Top Plate

6" Inch Caster 617 lbs Swivel Polyvinyl Chloride Top Plate

Regular price $20.04 USD
Regular price Sale price $20.04 USD
Sale Sold out
SKU: 6inch-Swivel-Caster-009
6" Inch Caster 617 lbs Swivel Polyvinyl Chloride Top Plate
  • Item Name: 6inch-Swivel-Caster-009
  • Wheel Diameter: 150mm
  • Wheel Width: 50mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 195mm
  • Overall Height Inch: 7.677"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Polyvinyl Chloride
  • Tire: Polyvinyl Chloride
  • Bearing type: Double ball beaing
  • Load Capacity: 617 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Mounting 6inch-Swivel-Caster-009 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 195mm = 7.677" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Each caster will carry the load of 617 lb and is Swivel type. Temperature range = -40 to 180 F. Buy the 6inch-Swivel-Caster-009 now, just add the quantity to basket and click on Checkout.
