KCW Casters

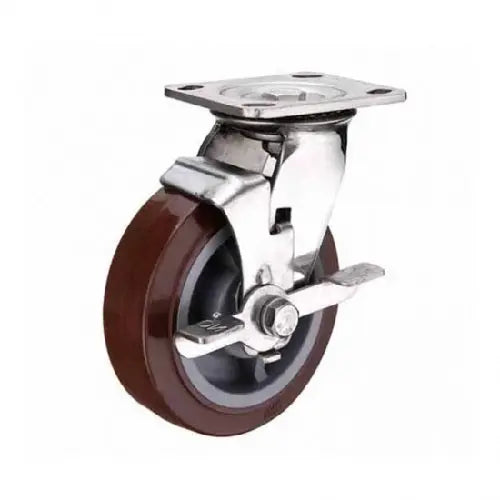

6" Inch Caster 617 lbs Swivel Stainless steel fork and Polyurethane Top Plate

6" Inch Caster 617 lbs Swivel Stainless steel fork and Polyurethane Top Plate

Regular price $53.11 USD
Regular price Sale price $53.11 USD
Sale Sold out
SKU: 6inch-Swivel-Caster-003
6" Inch Caster 617 lbs Swivel Stainless steel fork and Polyurethane Top Plate
  • Item Name: 6inch-Swivel-Caster-003
  • Wheel Diameter: 150mm
  • Wheel Width: 50mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 195mm
  • Overall Height Inch: 7.677"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Stainless steel fork and Polyurethane
  • Tire: Stainless steel fork and Polyurethane
  • Bearing type: Double ball beaing
  • Load Capacity: 617 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Whatever you are building needed to be on wheels, here come the 6inch-Swivel-Caster-003. This wheel caster has a wheel diameter of 150mm or 5.906" inch in inches. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 195mm/7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The caster core is made of Stainless steel fork and Polyurethane and has a Stainless steel fork and Polyurethane tire with a low friction Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 617 lb with a Swivel type. The temperature range is -40 to 180 F. Enjoy our 6inch-Swivel-Caster-003, we wish all the best in your project.
