KCW Casters

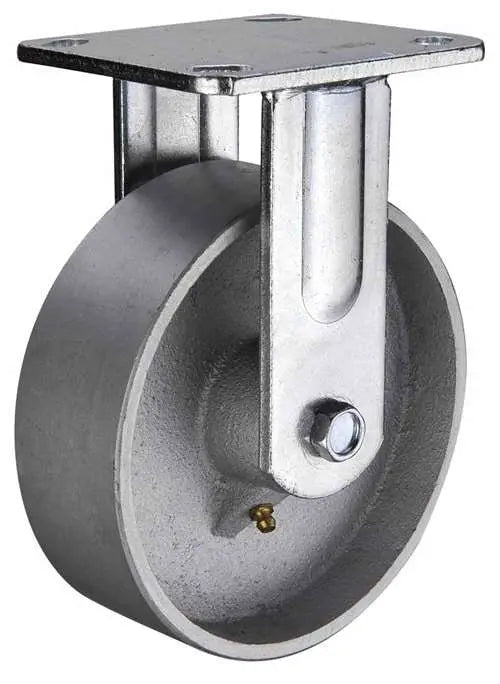

6" Inch Caster 661 lbs Fixed Cast Iron Top Plate
6" Inch Caster 661 lbs Fixed Cast Iron Top Plate
Couldn't load pickup availability
Mounting 6inch-Caster-033 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 190mm = 7.480" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 115mm x 100mm x 5.5mm with the holes distance of 72mm x 85mm. Low drag was achieved by a Cast Iron core on a Cast Iron tire spinning freely with a Roller bearing. Each caster will carry the load of 661 lb and is Fixed type. The temperature range is -40 to 180 F. Enjoy our 6inch-Caster-033, we wish all the best in your project.
