KCW Casters

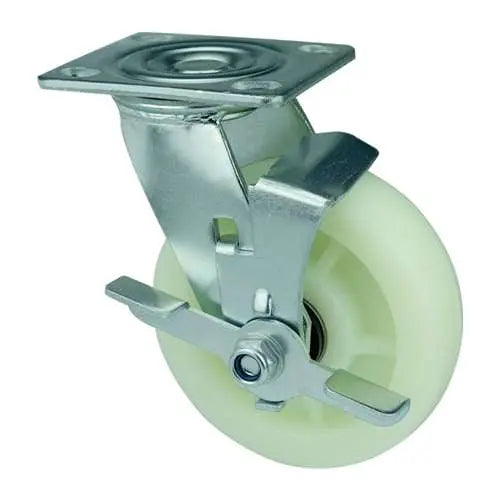

6" Inch Caster 661 lbs Swivel and Center Locking co-polypropylene Top Plate

6" Inch Caster 661 lbs Swivel and Center Locking co-polypropylene Top Plate

Regular price $7.62 USD
Regular price Sale price $7.62 USD
Sale Sold out
SKU: 6inch-Lock-Swivel-Caster-024
6" Inch Caster 661 lbs Swivel and Center Brake co-polypropylene Top Plate
  • Item Name: 6inch-Lock-Swivel-Caster-024
  • Wheel Diameter: 150mm
  • Wheel Width: 45mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 191mm
  • Overall Height Inch: 7.520"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: co-polypropylene
  • Tire: co-polypropylene
  • Bearing type: Double ball beaing
  • Load Capacity: 661 lb
  • Mounting: Swivel and Center Locking
  • Temperature Range: -40 to 180 F

  • Whatever you are building needed to be on wheels, here come the 6inch-Lock-Swivel-Caster-024. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 45mm (1.772" inch). The Caster with the wheel from end to end is 191mm = 7.520" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The caster core is made of co-polypropylene and has a co-polypropylene tire with a low friction Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 661 lb with a Swivel and Center Locking type. The temperature range is -40 to 180 F. Remember, you will have to buy the 6inch-Lock-Swivel-Caster-024 in order to have it :).
