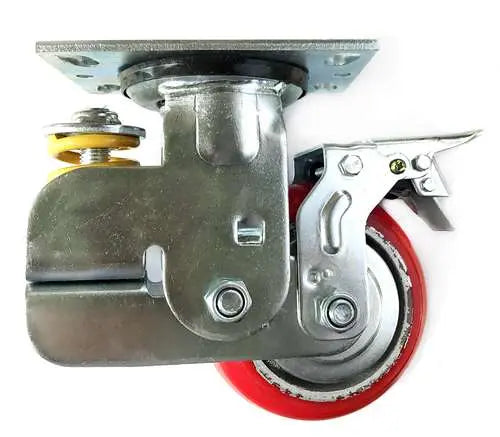

6" Inch Caster 661 lbs Swivel and Upper Locking Polyurethane and Cast iron core Top Plate

6" Inch Caster 661 lbs Swivel and Upper Brake Polyurethane and Cast iron core Top Plate

Item Name: 6inch-Lock-Swivel-Caster-004

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 222mm

Overall Height Inch: 8.740"

Mounting Type: Top Plate

Top Plate Size: 140mm x 108mm

Hole distance: 105mm x 75mm

Wheel Core: Polyurethane and Cast iron core

Tire: Polyurethane and Cast iron core

Bearing type: Ball bearing

Load Capacity: 661 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Wheel casters like the 6inch-Lock-Swivel-Caster-004 are used to roll your built machine or equipment back and forth. Diameter of the caster wheel is a metric standard 150mm that is equal to 5.906" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 222mm/8.740" inch. Mounted via a Top Plate that has the size of 140mm x 108mm and the holes distance of 105mm x 75mm. The caster core is made of Polyurethane and Cast iron core and has a Polyurethane and Cast iron core tire with a low friction Ball bearing. Each caster will carry the load of 661 lb and is Swivel and Upper Locking type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Lock-Swivel-Caster-004 in order to have it :).
