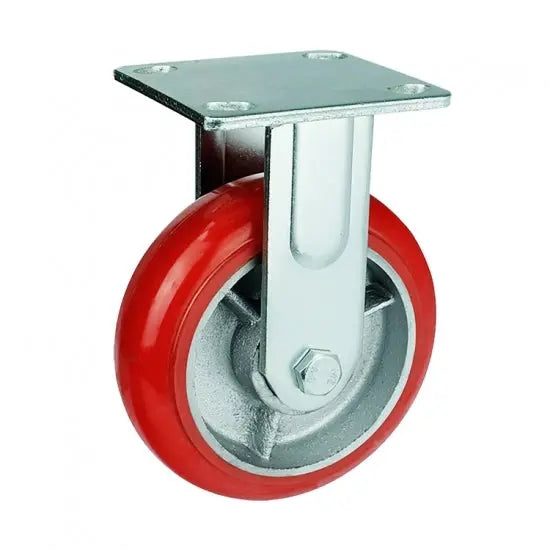

6" Inch Caster 772 lbs Fixed Iron core and Polyurethane Top Plate

6" Inch Caster 772 lbs Fixed Iron core and Polyurethane Top Plate

Item Name: 6inch-Caster-011

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 193mm

Overall Height Inch: 7.598"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Iron core and Polyurethane

Tire: Iron core and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 772 lb

Mounting: Fixed

Temperature Range: -40 to 180 F

Don't think too much, use 6inch-Caster-011 to get your DIY move and manuver around. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 193mm = 7.598" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The Double ball beaing design will enable the Iron core and Polyurethane tire to roll easily with a core made of Iron core and Polyurethane. Bearing in mind that every caster wheel has the load capacity of 772 lb with a Fixed type. The temperature range is -40 to 180 F. Enjoy our 6inch-Caster-011, we wish all the best in your project.
