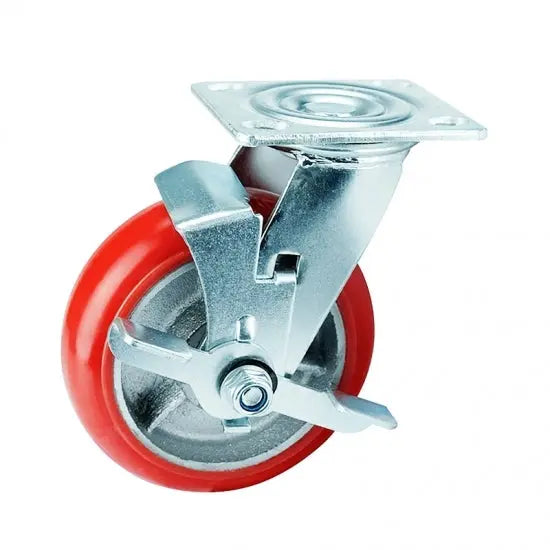

6" Inch Caster 772 lbs Swivel and Center Locking Iron core and Polyurethane Top Plate

6" Inch Caster 772 lbs Swivel and Center Brake Iron core and Polyurethane Top Plate

Item Name: 6inch-Lock-Swivel-Caster-005

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 193mm

Overall Height Inch: 7.598"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Iron core and Polyurethane

Tire: Iron core and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 772 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

Mounting the 6inch-Lock-Swivel-Caster-005 Wheel Caster can make your life easier, push or pull your new project on wheels. This wheel caster has a wheel diameter of 150mm or 5.906" inch in inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 193mm or 7.598" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Rolling with a wheel core material of Iron core and Polyurethane and a Iron core and Polyurethane tire rolled over Double ball beaing. Each caster will carry the load of 772 lb and is Swivel and Center Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 6inch-Lock-Swivel-Caster-005, we wish all the best in your project.
