KCW Casters

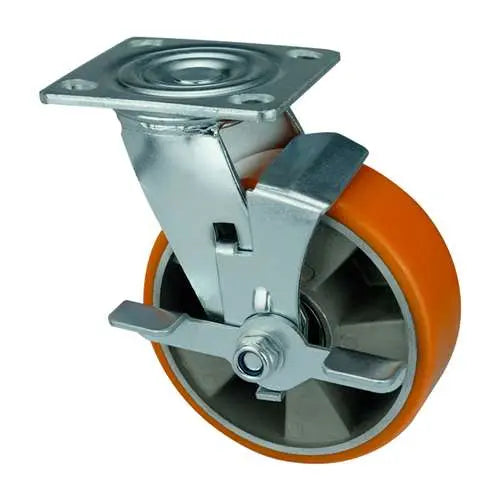

6" Inch Caster 882 lbs Side Locking Aluminum and Polyurethane Top Plate
6" Inch Caster 882 lbs Side Locking Aluminum and Polyurethane Top Plate
Couldn't load pickup availability
Don't think too much, use 6inch-Lock-Caster-003 to get your DIY move and manuver around. Diameter of the caster wheel is a metric standard 150mm that is equal to 5.906" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The overall height of the caster is 190mm or 7.480" inch. Mounted via a Top Plate that has the size of 115mm x 100mm and the holes distance of 72mm x 85mm. Rolling with a wheel core material of Aluminum and Polyurethane and a Aluminum and Polyurethane tire rolled over Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 882 lb with a Side Locking type. Temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Lock-Caster-003 in order to have it :).
