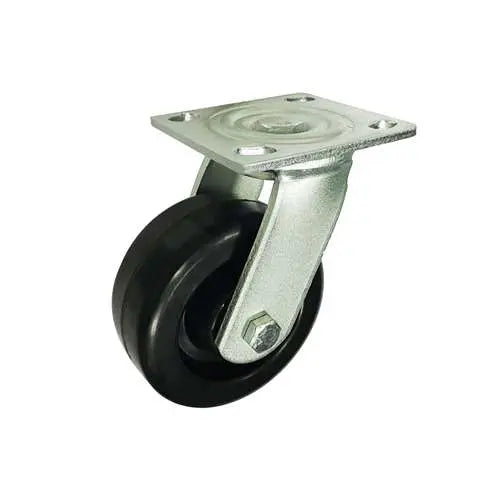

6" Inch Caster 882 lbs Swivel Phenolic and 0-180ºC Top Plate

6" Inch Caster 882 lbs Swivel Phenolic and 0-180ºC Top Plate

Item Name: 6inch-Swivel-Caster-030

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 190mm

Overall Height Inch: 7.480"

Mounting Type: Top Plate

Top Plate Size: 160mm x 114mm

Hole distance: 129mm x 74mm

Wheel Core: Phenolic and 0-180ºC

Tire: Phenolic and 0-180ºC

Bearing type: Roller bearing

Load Capacity: 882 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

6inch-Swivel-Caster-030 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 150mm that is equal to 5.906" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The overall height of the caster is 190mm or 7.480" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 160mm x 114mm with the holes distance of 129mm x 74mm. The caster core is made of Phenolic and 0-180ºC and has a Phenolic and 0-180ºC tire with a low friction Roller bearing. Bearing in mind that every caster wheel has the load capacity of 882 lb with a Swivel type. Temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Swivel-Caster-030 in order to have it :).
