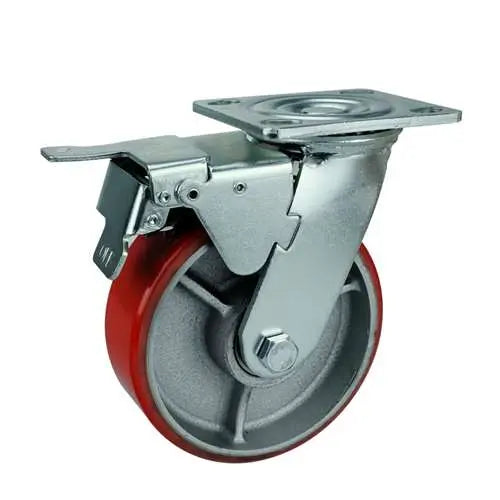

6" Inch Caster 992 lbs Swivel and Upper Locking Cast Iron and Polyurethane Top Plate

6" Inch Caster 992 lbs Swivel and Upper Brake Cast Iron and Polyurethane Top Plate

Item Name: 6inch-Lock-Swivel-Caster-009

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 200mm

Overall Height Inch: 7.874"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Cast Iron and Polyurethane

Tire: Cast Iron and Polyurethane

Bearing type: Roller bearing

Load Capacity: 992 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Mounting 6inch-Lock-Swivel-Caster-009 is the solution of making your project to move around by pushing. Diameter of the caster wheel is a metric standard 150mm that is equal to 5.906" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 200mm/7.874" inch. Mounted via a Top Plate that has the size of 115mm x 100mm x 6mm and the holes distance of 72mm x 85mm. The Roller bearing design will enable the Cast Iron and Polyurethane tire to roll easily with a core made of Cast Iron and Polyurethane. Each caster will carry the load of 992 lb and is Swivel and Upper Locking type. Temperature range = -40 to 180 F. Enjoy our 6inch-Lock-Swivel-Caster-009, we wish all the best in your project.
