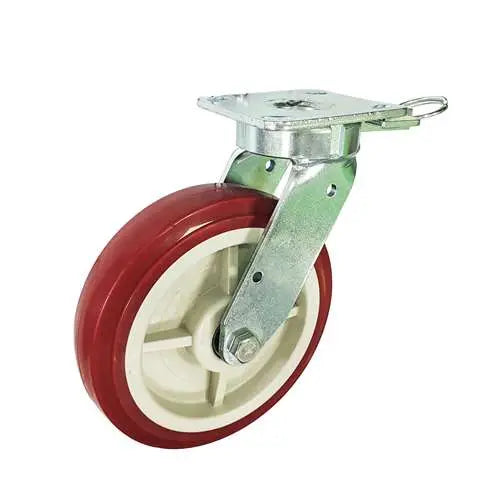

6" Inch Caster 992 lbs Swivel and Upper Locking Cast Iron and Polyurethane Top Plate

6" Inch Caster 992 lbs Swivel and Upper Brake Cast Iron and Polyurethane Top Plate

Item Name: 6inch-Lock-Swivel-Caster-010

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 200mm

Overall Height Inch: 7.874"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Cast Iron and Polyurethane

Tire: Cast Iron and Polyurethane

Bearing type: Roller bearing

Load Capacity: 992 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Whatever you are building needed to be on wheels, here come the 6inch-Lock-Swivel-Caster-010. This wheel caster has a wheel diameter of 150mm or 5.906" inch in inches. The thickness of the wheel is 50mm or 1.969" inch. The Caster with the wheel from end to end is 200mm = 7.874" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 115mm x 100mm x 6mm with the holes distance of 72mm x 85mm. Low drag was achieved by a Cast Iron and Polyurethane core on a Cast Iron and Polyurethane tire spinning freely with a Roller bearing. Each caster will carry the load of 992 lb and is Swivel and Upper Locking type. The temperature range is -40 to 180 F. Buy the 6inch-Lock-Swivel-Caster-010 now, just add the quantity to basket and click on Checkout.
