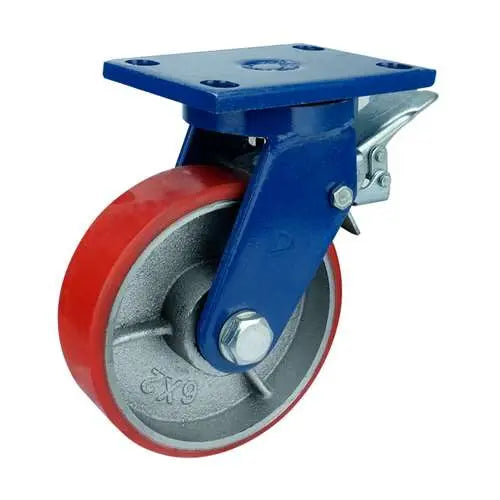

6" Inch Caster 992 lbs Swivel and Upper Locking Cast iron polyurethane Top Plate

6" Inch Caster 992 lbs Swivel and Upper Brake Cast iron polyurethane Top Plate

Item Name: 6inch-Lock-Swivel-Caster-015

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 205mm

Overall Height Inch: 8.071"

Mounting Type: Top Plate

Top Plate Size: 138mm x 110mm x 10mm

Hole distance: 110mm x 75mm

Wheel Core: Cast iron polyurethane

Tire: Cast iron polyurethane

Bearing type: Precision double ball bearing

Load Capacity: 992 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Don't think too much, use 6inch-Lock-Swivel-Caster-015 to get your DIY move and manuver around. This wheel caster has a wheel diameter of 150mm or 5.906" inch in inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 205mm or 8.071" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 138mm x 110mm x 10mm and holes distance of 110mm x 75mm. The caster core is made of Cast iron polyurethane and has a Cast iron polyurethane tire with a low friction Precision double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 992 lb with a Swivel and Upper Locking type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Lock-Swivel-Caster-015 in order to have it :).
