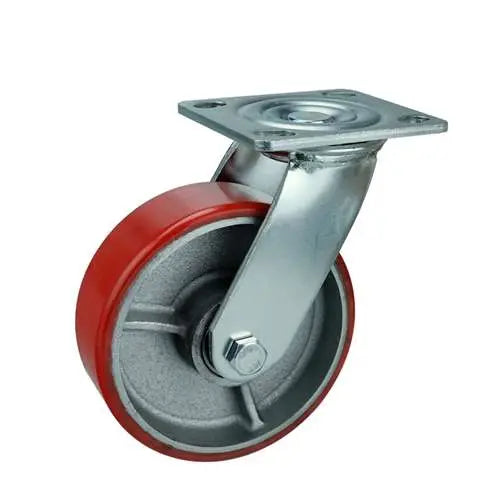

6" Inch Caster 992 lbs Swivel Cast Iron and Polyurethane Top Plate

6" Inch Caster 992 lbs Swivel Cast Iron and Polyurethane Top Plate

Item Name: 6inch-Swivel-Caster-021

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 200mm

Overall Height Inch: 7.874"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Cast Iron and Polyurethane

Tire: Cast Iron and Polyurethane

Bearing type: Roller bearing

Load Capacity: 992 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Don't think too much, use 6inch-Swivel-Caster-021 to get your DIY move and manuver around. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 200mm/7.874" inch. Mounted via a Top Plate that has the size of 115mm x 100mm x 6mm and the holes distance of 72mm x 85mm. The caster core is made of Cast Iron and Polyurethane and has a Cast Iron and Polyurethane tire with a low friction Roller bearing. Bearing in mind that every caster wheel has the load capacity of 992 lb with a Swivel type. Temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Swivel-Caster-021 in order to have it :).
