KCW Casters

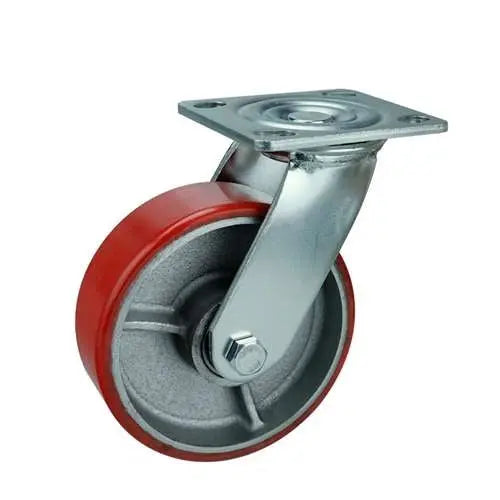

6" Inch Caster 992 lbs Swivel Iron core and Polyurethane Top Plate

6" Inch Caster 992 lbs Swivel Iron core and Polyurethane Top Plate

Regular price $17.53 USD
Regular price Sale price $17.53 USD
Sale Sold out
SKU: 6inch-Swivel-Caster-026
6" Inch Caster 992 lbs Swivel Iron core and Polyurethane Top Plate
  • Item Name: 6inch-Swivel-Caster-026
  • Wheel Diameter: 150mm
  • Wheel Width: 50mm
  • Wheel Diameter: 6" Inch = 150mm
  • Overall Height: 191mm
  • Overall Height Inch: 7.520"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Iron core and Polyurethane
  • Tire: Iron core and Polyurethane
  • Bearing type: Double ball beaing
  • Load Capacity: 992 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Imagine your office chair has no wheel caster, you would be carrying it right and left, install 6inch-Swivel-Caster-026 instead. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. The thickness of the wheel is 50mm or 1.969" inch. The overall height of the caster is 191mm or 7.520" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. Rolling with a wheel core material of Iron core and Polyurethane and a Iron core and Polyurethane tire rolled over Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 992 lb with a Swivel type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Swivel-Caster-026 in order to have it :).
