KCW Casters

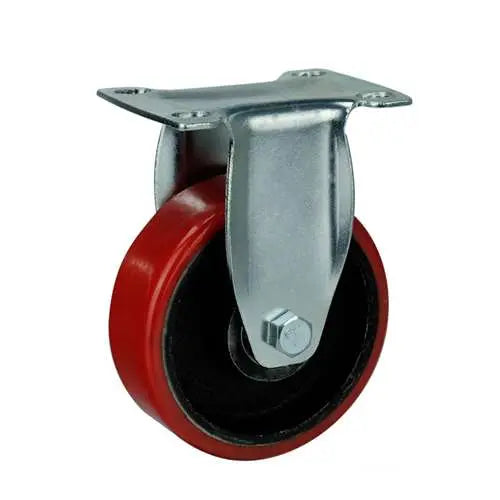

60mm Caster 176 lbs Rigid Iron and Polyurethane Top Plate

60mm Caster 176 lbs Rigid Iron and Polyurethane Top Plate

Regular price $6.92 USD
Regular price Sale price $6.92 USD
Sale Sold out
SKU: 60mm-Caster-001
60mm Caster 176 lbs Rigid Iron and Polyurethane Top Plate
  • Item Name: 60mm-Caster-001
  • Wheel Diameter: 60mm
  • Wheel Width: 32mm
  • Overall Height: 92mm
  • Overall Height Inch: 3.622"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Iron and Polyurethane
  • Tire: Iron and Polyurethane
  • Bearing type: Double ball bearing
  • Load Capacity: 176 lb
  • Mounting: Rigid
  • Temperature Range: -40 to 180 F

  • Mounting the 60mm-Caster-001 Wheel Caster can make your life easier, push or pull your new project on wheels. Diameter of the caster wheel is a metric standard 60mm that is equal to 2.362" inch with imperial units. The wheel has a width of 32mm=1.260" inch. The caster dimensions heightwise is 92mm/3.622" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Rolling with a wheel core material of Iron and Polyurethane and a Iron and Polyurethane tire rolled over Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 176 lb with a Rigid type. Temperature range = -40 to 180 F. Remember, you will have to buy the 60mm-Caster-001 in order to have it :).
