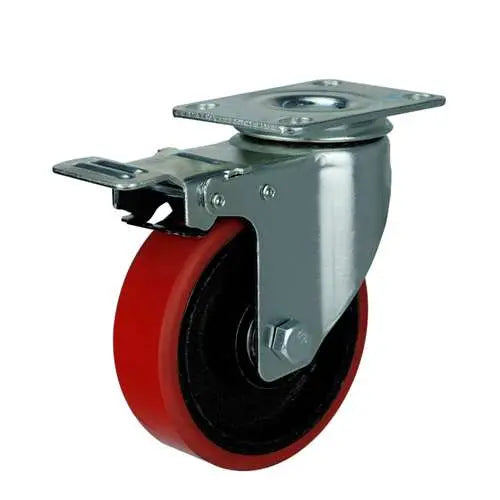

60mm Caster 176 lbs Swivel and Upper Locking Iron and Polyurethane Top Plate

60mm Caster 176 lbs Swivel and Upper Brake Iron and Polyurethane Top Plate

Item Name: 60mm-Lock-Swivel-Caster-007

Wheel Diameter: 60mm

Wheel Width: 32mm

Overall Height: 92mm

Overall Height Inch: 3.622"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Iron and Polyurethane

Tire: Iron and Polyurethane

Bearing type: Double ball bearing

Load Capacity: 176 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Whatever you are building needed to be on wheels, here come the 60mm-Lock-Swivel-Caster-007. This wheel caster has a wheel diameter of 60mm or 2.362" inch in inches. The thickness of the wheel is 32mm or 1.260" inch. The overall height of the caster is 92mm or 3.622" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 45mm x 72mm. Rolling with a wheel core material of Iron and Polyurethane and a Iron and Polyurethane tire rolled over Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 176 lb with a Swivel and Upper Locking type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 60mm-Lock-Swivel-Caster-007 in order to have it :).
