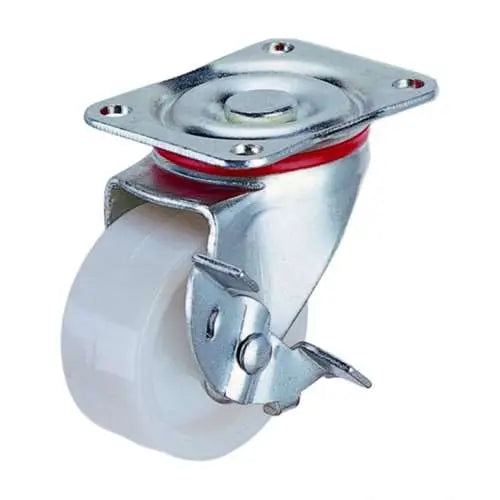

65mm Caster 110 lbs Swivel and Center Locking Plastic Top Plate

65mm Caster 110 lbs Swivel and Center Brake Plastic Top Plate

Item Name: 65mm-Lock-Swivel-Caster-004

Wheel Diameter: 65mm

Wheel Width: 23mm

Overall Height: 84mm

Overall Height Inch: 3.307"

Mounting Type: Top Plate

Top Plate Size: 65mm x 54mm

Hole distance: 51mm x 38mm

Wheel Core: Plastic

Tire: Plastic

Load Capacity: 110 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

Mounting the 65mm-Lock-Swivel-Caster-004 Wheel Caster can make your life easier, push or pull your new project on wheels. This wheel caster has a wheel diameter of 65mm or 2.559" inch in inches. Dimensions of the caster wheel is 23mm (.906" inch). The Caster with the wheel from end to end is 84mm = 3.307" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 65mm x 54mm with the holes distance of 51mm x 38mm. Low drag was achieved by a Plastic core on a Plastic tire spinning freely with a -. Bearing in mind that every caster wheel has the load capacity of 110 lb with a Swivel and Center Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 65mm-Lock-Swivel-Caster-004, we wish all the best in your project.
