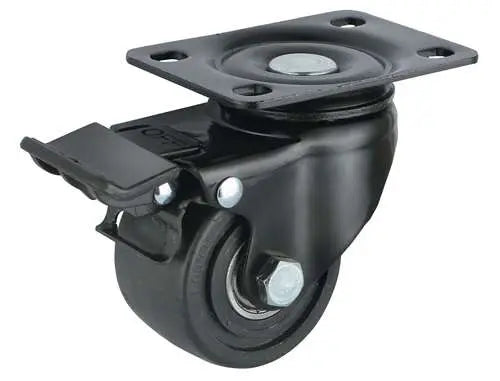

65mm Caster 331 lbs Swivel and Upper Locking Nylon Top Plate

65mm Caster 331 lbs Swivel and Upper Brake Nylon Top Plate

Item Name: 65mm-Lock-Swivel-Caster-003

Wheel Diameter: 65mm

Wheel Width: 38.5mm

Overall Height: 81mm

Overall Height Inch: 3.189"

Mounting Type: Top Plate

Top Plate Size: 92mm x 65mm

Hole distance: 73mm x 45mm

Wheel Core: Nylon

Tire: Nylon

Bearing type: Ball bearing

Load Capacity: 331 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Mounting 65mm-Lock-Swivel-Caster-003 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 65mm diameter/2.559" inch inches. The wheel has a width of 38.5mm=1.516" inch. The Caster with the wheel from end to end is 81mm = 3.189" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 92mm x 65mm and holes distance of 73mm x 45mm. The caster core is made of Nylon and has a Nylon tire with a low friction Ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 331 lb with a Swivel and Upper Locking type. The temperature range is -40 to 180 F. Enjoy our 65mm-Lock-Swivel-Caster-003, we wish all the best in your project.
