KCW Casters

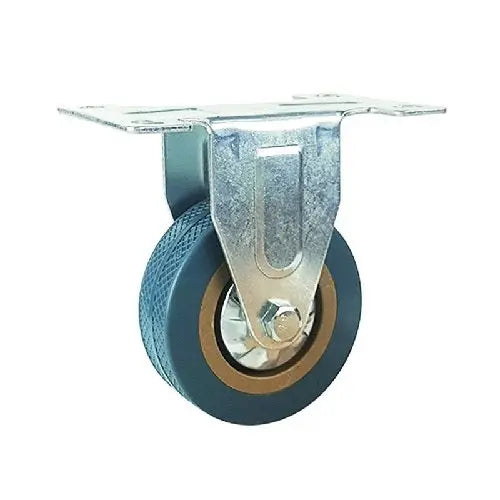

65mm Caster 44 lbs Fixed Polyvinyl Chloride Top Plate

65mm Caster 44 lbs Fixed Polyvinyl Chloride Top Plate

Regular price $1.62 USD
Regular price Sale price $1.62 USD
Sale Sold out
SKU: 65mm-Caster-001
65mm Caster 44 lbs Fixed Polyvinyl Chloride Top Plate
  • Item Name: 65mm-Caster-001
  • Wheel Diameter: 65mm
  • Wheel Width: 21mm
  • Overall Height: 88mm
  • Overall Height Inch: 3.465"
  • Mounting Type: Top Plate
  • Top Plate Size: 65mm x 65mm
  • Hole distance: 49mm x 49mm
  • Wheel Core: Polyvinyl Chloride
  • Tire: Polyvinyl Chloride
  • Bearing type: Plain bearing
  • Load Capacity: 44 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • 65mm-Caster-001 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 65mm diameter/2.559" inch inches. The thickness of the wheel is 21mm or .827" inch. The overall height of the caster is 88mm or 3.465" inch. Mounted via a Top Plate that has the size of 65mm x 65mm and the holes distance of 49mm x 49mm. Low drag was achieved by a Polyvinyl Chloride core on a Polyvinyl Chloride tire spinning freely with a Plain bearing. Each caster will carry the load of 44 lb and is Fixed type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 65mm-Caster-001 in order to have it :).
