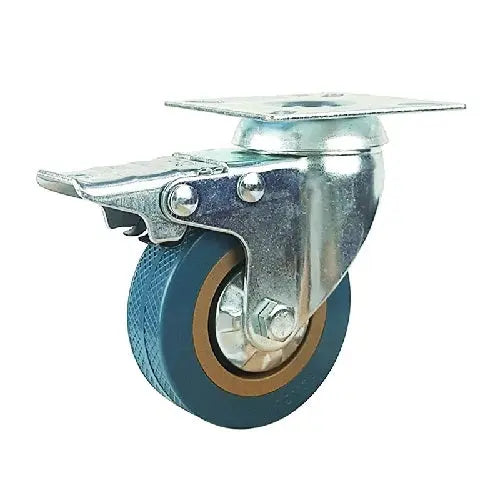

65mm Caster 44 lbs Swivel and Upper Locking Polyvinyl Chloride Top Plate

65mm Caster 44 lbs Swivel and Upper Brake Polyvinyl Chloride Top Plate

Item Name: 65mm-Lock-Swivel-Caster-001

Wheel Diameter: 65mm

Wheel Width: 21mm

Overall Height: 88mm

Overall Height Inch: 3.465"

Mounting Type: Top Plate

Top Plate Size: 65mm x 65mm

Hole distance: 49mm x 49mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Plain bearing

Load Capacity: 44 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Wheel casters like the 65mm-Lock-Swivel-Caster-001 are used to roll your built machine or equipment back and forth. This wheel caster has a wheel diameter of 65mm or 2.559" inch in inches. The thickness of the wheel is 21mm or .827" inch. The Caster with the wheel from end to end is 88mm = 3.465" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 65mm x 65mm with the holes distance of 49mm x 49mm. The Plain bearing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Each caster will carry the load of 44 lb and is Swivel and Upper Locking type. The temperature range is -40 to 180 F. Enjoy our 65mm-Lock-Swivel-Caster-001, we wish all the best in your project.
