KCW Casters

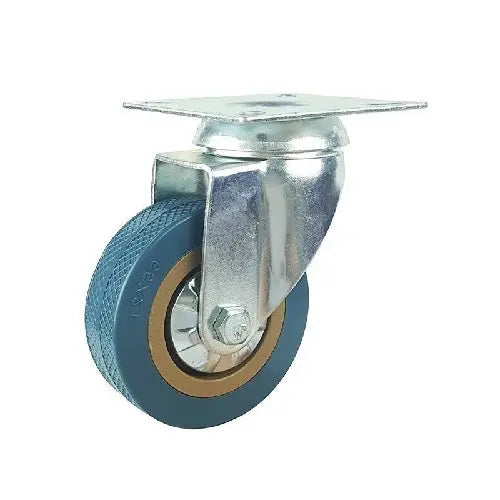

65mm Caster 44 lbs Swivel Polyvinyl Chloride Top Plate

65mm Caster 44 lbs Swivel Polyvinyl Chloride Top Plate

Regular price $2.16 USD
Regular price Sale price $2.16 USD
Sale Sold out
SKU: 65mm-Swivel-Caster-001
65mm Caster 44 lbs Swivel Polyvinyl Chloride Top Plate
  • Item Name: 65mm-Swivel-Caster-001
  • Wheel Diameter: 65mm
  • Wheel Width: 21mm
  • Overall Height: 88mm
  • Overall Height Inch: 3.465"
  • Mounting Type: Top Plate
  • Top Plate Size: 65mm x 65mm
  • Hole distance: 49mm x 49mm
  • Wheel Core: Polyvinyl Chloride
  • Tire: Polyvinyl Chloride
  • Bearing type: Plain bearing
  • Load Capacity: 44 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Imagine your office chair has no wheel caster, you would be carrying it right and left, install 65mm-Swivel-Caster-001 instead. Diameter of the caster wheel is a metric standard 65mm that is equal to 2.559" inch with imperial units. The wheel has a width of 21mm=.827" inch. The Caster with the wheel from end to end is 88mm = 3.465" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 65mm x 65mm and holes distance of 49mm x 49mm. Rolling with a wheel core material of Polyvinyl Chloride and a Polyvinyl Chloride tire rolled over Plain bearing. Each caster will carry the load of 44 lb and is Swivel type. The temperature range is -40 to 180 F. Remember, you will have to buy the 65mm-Swivel-Caster-001 in order to have it :).
