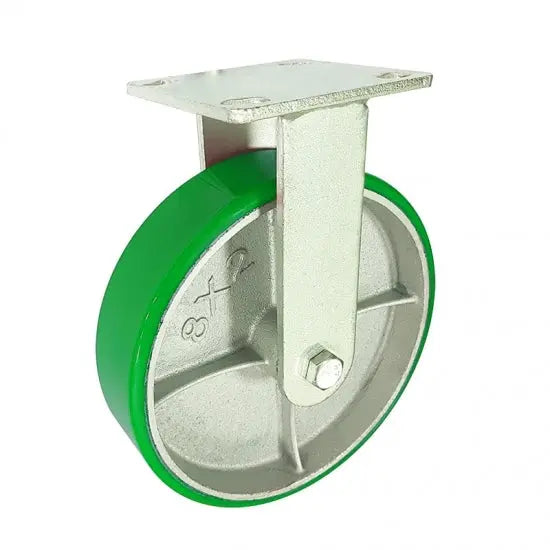

8" Inch Caster 1190 lbs Fixed Cast Iron and Polyurethane Top Plate

8" Inch Caster 1190 lbs Fixed Cast Iron and Polyurethane Top Plate

Regular price $23.71 USD
Regular price Sale price $23.71 USD
Sale Sold out
SKU: 8inch-Caster-018
8" Inch Caster 1190 lbs Fixed Cast Iron and Polyurethane Top Plate
  • Item Name: 8inch-Caster-018
  • Wheel Diameter: 200mm
  • Wheel Width: 50mm
  • Wheel Diameter: 8" Inch = 200mm
  • Overall Height: 250mm
  • Overall Height Inch: 9.843"
  • Mounting Type: Top Plate
  • Top Plate Size: 115mm x 100mm x 6mm
  • Hole distance: 72mm x 85mm
  • Wheel Core: Cast Iron and Polyurethane
  • Tire: Cast Iron and Polyurethane
  • Bearing type: Roller bearing
  • Load Capacity: 1190 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • You need 8inch-Caster-018 to have your office desk, equipment or even a machine to easily roll them around. This wheel caster has a wheel diameter of 200mm or 7.874" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 250mm = 9.843" inch. Mounted via a Top Plate that has the size of 115mm x 100mm x 6mm and the holes distance of 72mm x 85mm. Low drag was achieved by a Cast Iron and Polyurethane core on a Cast Iron and Polyurethane tire spinning freely with a Roller bearing. Bearing in mind that every caster wheel has the load capacity of 1190 lb with a Fixed type. Temperature range = -40 to 180 F. Buy the 8inch-Caster-018 now, just add the quantity to basket and click on Checkout.
