KCW Casters

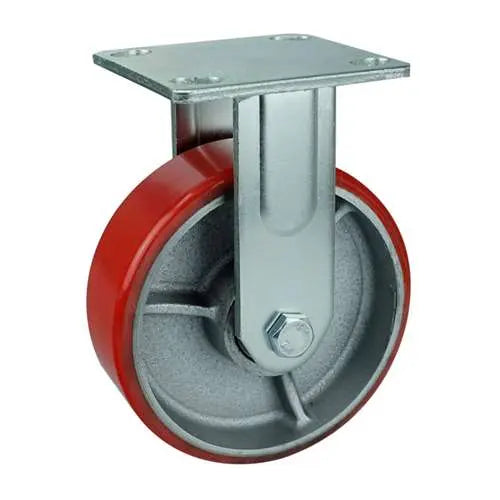

8" Inch Caster 1190 lbs Fixed Iron core and Polyurethane Top Plate

8" Inch Caster 1190 lbs Fixed Iron core and Polyurethane Top Plate

Regular price $20.34 USD
Regular price Sale price $20.34 USD
Sale Sold out
SKU: 8inch-Caster-021
8" Inch Caster 1190 lbs Fixed Iron core and Polyurethane Top Plate
  • Item Name: 8inch-Caster-021
  • Wheel Diameter: 200mm
  • Wheel Width: 50mm
  • Wheel Diameter: 8" Inch = 200mm
  • Overall Height: 241mm
  • Overall Height Inch: 9.488"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Iron core and Polyurethane
  • Tire: Iron core and Polyurethane
  • Bearing type: Double ball beaing
  • Load Capacity: 1190 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • Imagine your office chair has no wheel caster, you would be carrying it right and left, install 8inch-Caster-021 instead. This caster is rolled on a wheel that has 200mm diameter/7.874" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 241mm = 9.488" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The caster core is made of Iron core and Polyurethane and has a Iron core and Polyurethane tire with a low friction Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 1190 lb with a Fixed type. The temperature range is -40 to 180 F. Buy the 8inch-Caster-021 now, just add the quantity to basket and click on Checkout.
