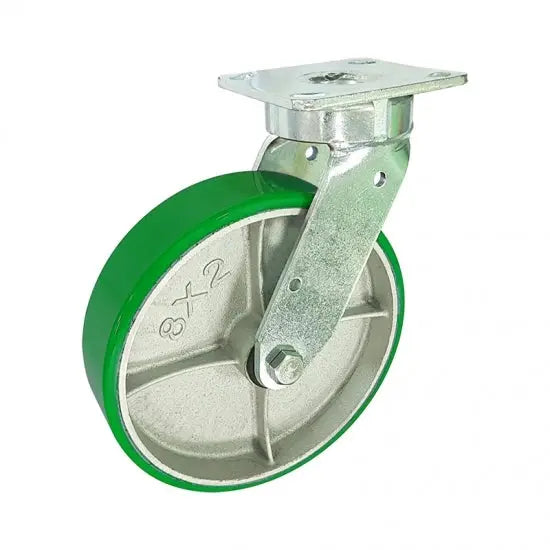

8" Inch Caster 1190 lbs Swivel Cast Iron and Polyurethane Top Plate

8" Inch Caster 1190 lbs Swivel Cast Iron and Polyurethane Top Plate

Item Name: 8inch-Swivel-Caster-020

Wheel Diameter: 200mm

Wheel Width: 50mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 250mm

Overall Height Inch: 9.843"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Cast Iron and Polyurethane

Tire: Cast Iron and Polyurethane

Bearing type: Roller bearing

Load Capacity: 1190 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Imagine your office chair has no wheel caster, you would be carrying it right and left, install 8inch-Swivel-Caster-020 instead. Diameter of the caster wheel is a metric standard 200mm that is equal to 7.874" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The overall height of the caster is 250mm or 9.843" inch. Mounted via a Top Plate that has the size of 115mm x 100mm x 6mm and the holes distance of 72mm x 85mm. Low drag was achieved by a Cast Iron and Polyurethane core on a Cast Iron and Polyurethane tire spinning freely with a Roller bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 1190 lb with a Swivel type. The temperature range is -40 to 180 F. Buy the 8inch-Swivel-Caster-020 now, just add the quantity to basket and click on Checkout.
