KCW Casters

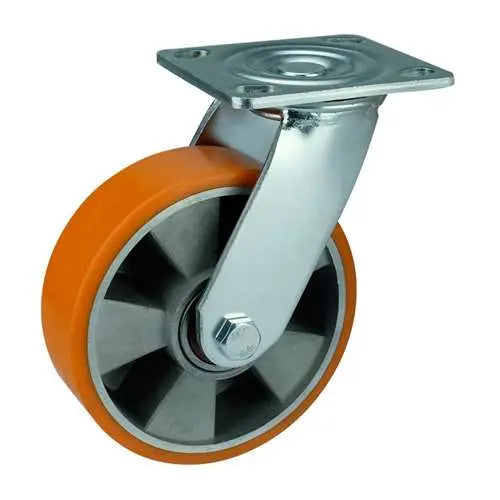

8" Inch Caster 1543 lbs Swivel Aluminium and Polyurethane Top Plate

8" Inch Caster 1543 lbs Swivel Aluminium and Polyurethane Top Plate

Regular price $41.07 USD
Regular price Sale price $41.07 USD
Sale Sold out
SKU: 8inch-Swivel-Caster-010
8" Inch Caster 1543 lbs Swivel Aluminium and Polyurethane Top Plate
  • Item Name: 8inch-Swivel-Caster-010
  • Wheel Diameter: 200mm
  • Wheel Width: 50mm
  • Wheel Diameter: 8" Inch = 200mm
  • Overall Height: 250mm
  • Overall Height Inch: 9.843"
  • Mounting Type: Top Plate
  • Top Plate Size: 115mm x 100mm x 6mm
  • Hole distance: 72mm x 85mm
  • Wheel Core: Aluminium and Polyurethane
  • Tire: Aluminium and Polyurethane
  • Bearing type: Double ball beaing
  • Load Capacity: 1543 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • You need 8inch-Swivel-Caster-010 to have your office desk, equipment or even a machine to easily roll them around. This caster is rolled on a wheel that has 200mm diameter/7.874" inch inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 250mm/9.843" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 100mm x 6mm and holes distance of 72mm x 85mm. Rolling with a wheel core material of Aluminium and Polyurethane and a Aluminium and Polyurethane tire rolled over Double ball beaing. Each caster will carry the load of 1543 lb and is Swivel type. Temperature range = -40 to 180 F. Buy the 8inch-Swivel-Caster-010 now, just add the quantity to basket and click on Checkout.
