KCW Casters

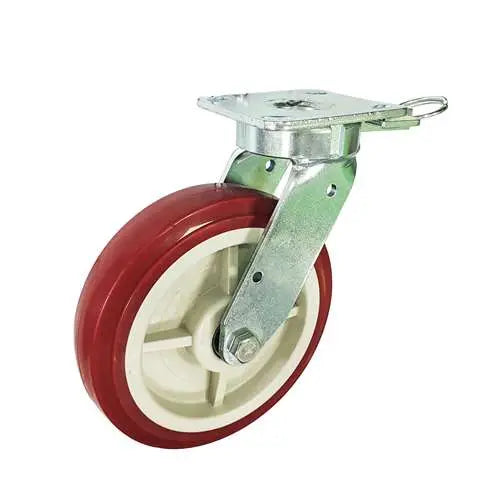

8" Inch Caster 1543 lbs Swivel and Upper Locking Aluminium and Polyurethane Top Plate
8" Inch Caster 1543 lbs Swivel and Upper Locking Aluminium and Polyurethane Top Plate
Couldn't load pickup availability
Mounting 8inch-Lock-Swivel-Caster-003 is the solution of making your project to move around by pushing. Diameter of the caster wheel is a metric standard 200mm that is equal to 7.874" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 250mm/9.843" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 115mm x 100mm x 6mm with the holes distance of 72mm x 85mm. Low drag was achieved by a Aluminium and Polyurethane core on a Aluminium and Polyurethane tire spinning freely with a Double ball beaing. Each caster will carry the load of 1543 lb and is Swivel and Upper Locking type. The temperature range is -40 to 180 F. Enjoy our 8inch-Lock-Swivel-Caster-003, we wish all the best in your project.
