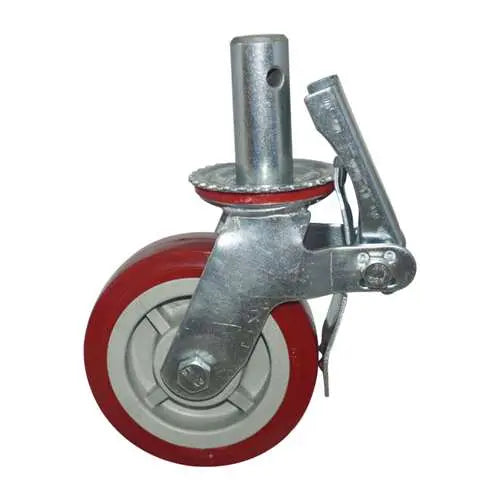

8" Inch Caster 551 lbs Swivel and Upper Locking Polypropylene rim and and Polyvinyl Chloride

8" Inch Caster 551 lbs Swivel and Upper Locking Polypropylene rim and and Polyvinyl Chloride

Regular price $16.31 USD
Regular price Sale price $16.31 USD
Sale Sold out
SKU: 8inch-Lock-Swivel-Caster-017
8" Inch Caster 551 lbs Swivel and Upper Brake Polypropylene rim and and Polyvinyl Chloride
  • Item Name: 8inch-Lock-Swivel-Caster-017
  • Wheel Diameter: 200mm
  • Wheel Width: 50mm
  • Wheel Diameter: 8" Inch = 200mm
  • Total Height: 240mm
  • Inserted link: 35mm x 95mm
  • Wheel Core: Polypropylene rim and and Polyvinyl Chloride
  • Tire: Polypropylene rim and and Polyvinyl Chloride
  • Net weight: 7 lb
  • Bearing type: Roller bearing
  • Load Capacity: 551 lb
  • Mounting: Swivel and Upper Locking
  • Temperature Range: -40 to 180 F

  • Mounting 8inch-Lock-Swivel-Caster-017 is the solution of making your project to move around by pushing. This wheel caster has a wheel diameter of 200mm or 7.874" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 250mm/9.843" inch. This wheel caster can be mounted using a with the dimensions of 180mm x 145mm Top Plate: 12mm+housing: 10mm and holes distance of 140mm x 105mm. Low drag was achieved by a Polypropylene rim and and Polyvinyl Chloride core on a Polypropylene rim and and Polyvinyl Chloride tire spinning freely with a Roller bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 551 lb with a Swivel and Upper Locking type. Last and not least the temperature range = -40 to 180 F. Buy the 8inch-Lock-Swivel-Caster-017 now, just add the quantity to basket and click on Checkout.
