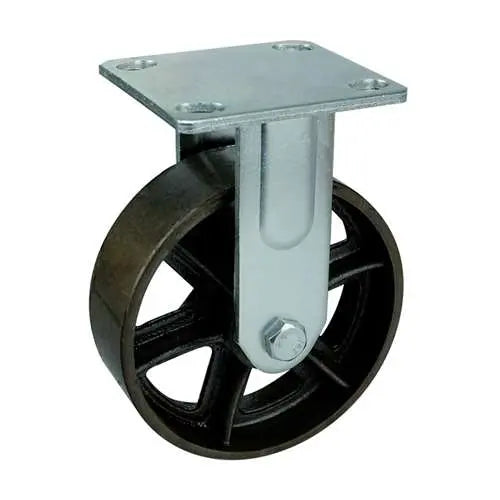

8" Inch Caster 661 lbs Fixed Cast iron Top Plate

8inch-Caster-031 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This wheel caster has a wheel diameter of 200mm or 7.874" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 240mm = 9.449" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The caster core is made of Cast iron and has a Cast iron tire with a low friction Roller bearing. Each caster will carry the load of 661 lb and is Fixed type. The temperature range is -40 to 180 F. Enjoy our 8inch-Caster-031, we wish all the best in your project.
