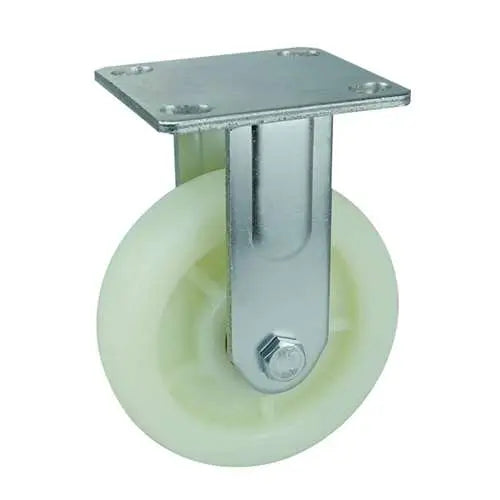

8" Inch Caster 661 lbs Fixed Polypropylene Top Plate

Whatever you are building needed to be on wheels, here come the 8inch-Caster-029. Diameter of the caster wheel is a metric standard 200mm that is equal to 7.874" inch with imperial units. The thickness of the wheel is 45mm or 1.772" inch. The overall height of the caster is 240mm or 9.449" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 115mm x 110mm x 6mm with the holes distance of 72mm x 85mm. Rolling with a wheel core material of Polypropylene and a Polypropylene tire rolled over Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 661 lb with a Fixed type. The temperature range is -40 to 180 F. Remember, you will have to buy the 8inch-Caster-029 in order to have it :).
