8" Inch Caster 661 lbs Fixed Thermoplastic Rubber Top Plate

8" Inch Caster 661 lbs Fixed Thermoplastic Rubber Top Plate

Item Name: 8inch-Caster-004

Wheel Diameter: 200mm

Wheel Width: 50mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 240mm

Overall Height Inch: 9.449"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Double ball beaing

Load Capacity: 661 lb

Mounting: Fixed

Temperature Range: -40 to 180 F

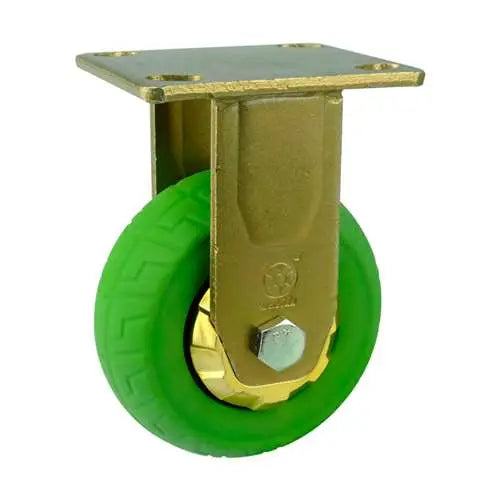

8inch-Caster-004 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 200mm diameter/7.874" inch inches. The thickness of the wheel is 50mm or 1.969" inch. The overall height of the caster is 240mm or 9.449" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The caster core is made of Thermoplastic Rubber and has a Thermoplastic Rubber tire with a low friction Double ball beaing. Each caster will carry the load of 661 lb and is Fixed type. The temperature range is -40 to 180 F. Buy the 8inch-Caster-004 now, just add the quantity to basket and click on Checkout.
