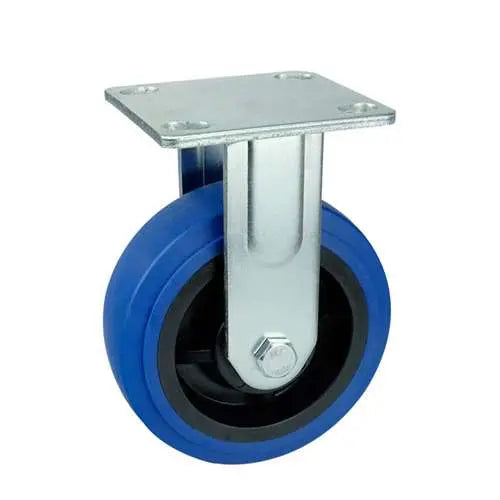

8" Inch Caster 661 lbs Fixed Thermoplastic Rubber Top Plate

8" Inch Caster 661 lbs Fixed Thermoplastic Rubber Top Plate

Item Name: 8inch-Caster-016

Wheel Diameter: 200mm

Wheel Width: 50mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 240mm

Overall Height Inch: 9.449"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Double ball beaing

Load Capacity: 661 lb

Mounting: Fixed

Temperature Range: -40 to 180 F

8inch-Caster-016 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 200mm diameter/7.874" inch inches. The thickness of the wheel is 50mm or 1.969" inch. The overall height of the caster is 240mm or 9.449" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. The caster core is made of Thermoplastic Rubber and has a Thermoplastic Rubber tire with a low friction Double ball beaing. Each caster will carry the load of 661 lb and is Fixed type. The temperature range is -40 to 180 F. Buy the 8inch-Caster-016 now, just add the quantity to basket and click on Checkout.
