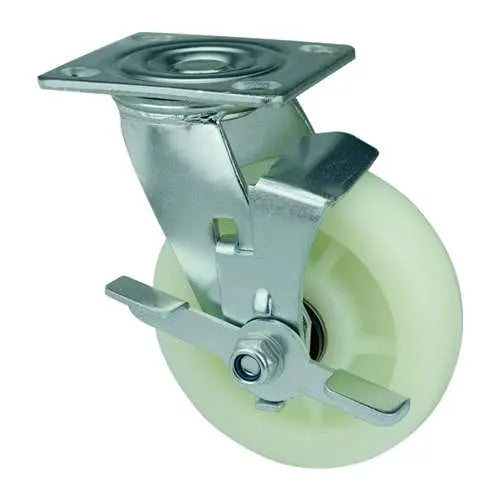

8" Inch Caster 661 lbs Side Locking Polypropylene Top Plate

8" Inch Caster 661 lbs Side Brake Polypropylene Top Plate

Item Name: 8inch-Lock-Caster-006

Wheel Diameter: 200mm

Wheel Width: 45mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 240mm

Overall Height Inch: 9.449"

Mounting Type: Top Plate

Top Plate Size: 115mm x 110mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Polypropylene

Tire: Polypropylene

Bearing type: Double ball beaing

Load Capacity: 661 lb

Mounting: Side Locking

Temperature Range: -40 to 180 F

Mounting 8inch-Lock-Caster-006 is the solution of making your project to move around by pushing. Diameter of the caster wheel is a metric standard 200mm that is equal to 7.874" inch with imperial units. The thickness of the wheel is 45mm or 1.772" inch. The overall height of the caster is 240mm or 9.449" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 110mm x 6mm and holes distance of 72mm x 85mm. The Double ball beaing design will enable the Polypropylene tire to roll easily with a core made of Polypropylene. Bearing in mind that every caster wheel has the load capacity of 661 lb with a Side Locking type. The temperature range is -40 to 180 F. Remember, you will have to buy the 8inch-Lock-Caster-006 in order to have it :).
