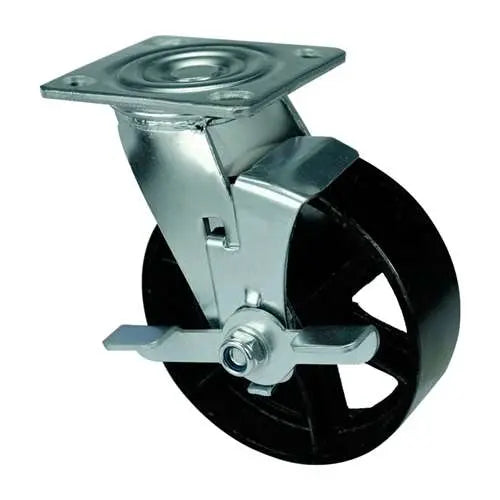

8" Inch Caster 661 lbs Swivel and Center Locking Cast iron Top Plate

8" Inch Caster 661 lbs Swivel and Center Brake Cast iron Top Plate

Item Name: 8inch-Lock-Swivel-Caster-024

Wheel Diameter: 200mm

Wheel Width: 50mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 240mm

Overall Height Inch: 9.449"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Cast iron

Tire: Cast iron

Bearing type: Roller bearing

Load Capacity: 661 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

Imagine your office chair has no wheel caster, you would be carrying it right and left, install 8inch-Lock-Swivel-Caster-024 instead. This wheel caster has a wheel diameter of 200mm or 7.874" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 240mm = 9.449" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Low drag was achieved by a Cast iron core on a Cast iron tire spinning freely with a Roller bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 661 lb with a Swivel and Center Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 8inch-Lock-Swivel-Caster-024, we wish all the best in your project.
