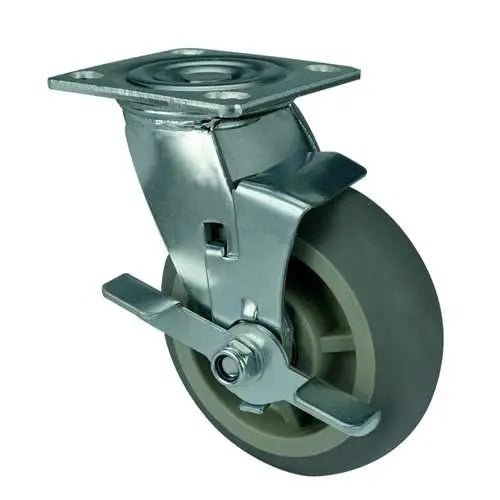

8" Inch Caster 661 lbs Swivel and Center Locking Polypropylene core and Thermoplastic Rubber Top Plate

8" Inch Caster 661 lbs Swivel and Center Brake Polypropylene core and Thermoplastic Rubber Top Plate

Item Name: 8inch-Lock-Swivel-Caster-006

Wheel Diameter: 200mm

Wheel Width: 50mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 240mm

Overall Height Inch: 9.449"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polypropylene core and Thermoplastic Rubber

Tire: Polypropylene core and Thermoplastic Rubber

Bearing type: Double ball beaing

Load Capacity: 661 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

Mounting the 8inch-Lock-Swivel-Caster-006 Wheel Caster can make your life easier, push or pull your new project on wheels. Diameter of the caster wheel is a metric standard 200mm that is equal to 7.874" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 240mm/9.449" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Low drag was achieved by a Polypropylene core and Thermoplastic Rubber core on a Polypropylene core and Thermoplastic Rubber tire spinning freely with a Double ball beaing. Each caster will carry the load of 661 lb and is Swivel and Center Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 8inch-Lock-Swivel-Caster-006, we wish all the best in your project.
