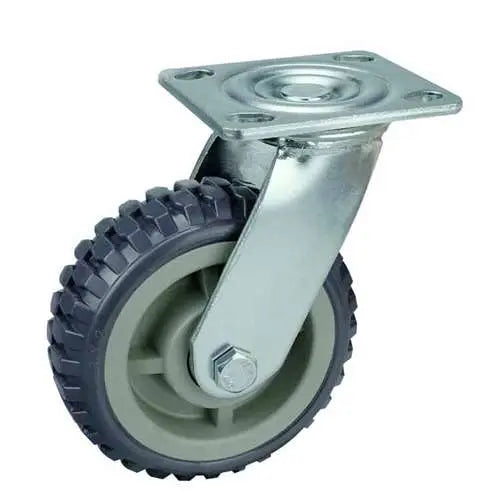

8" Inch Caster 661 lbs Swivel Polypropylene core and Polyurethane Top Plate

8" Inch Caster 661 lbs Swivel Polypropylene core and Polyurethane Top Plate

Item Name: 8inch-Swivel-Caster-019

Wheel Diameter: 200mm

Wheel Width: 50mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 240mm

Overall Height Inch: 9.449"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polypropylene core and Polyurethane

Tire: Polypropylene core and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 661 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Mounting the 8inch-Swivel-Caster-019 Wheel Caster can make your life easier, push or pull your new project on wheels. This wheel caster has a wheel diameter of 200mm or 7.874" inch in inches. The thickness of the wheel is 50mm or 1.969" inch. The Caster with the wheel from end to end is 240mm = 9.449" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The caster core is made of Polypropylene core and Polyurethane and has a Polypropylene core and Polyurethane tire with a low friction Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 661 lb with a Swivel type. The temperature range is -40 to 180 F. Enjoy our 8inch-Swivel-Caster-019, we wish all the best in your project.
