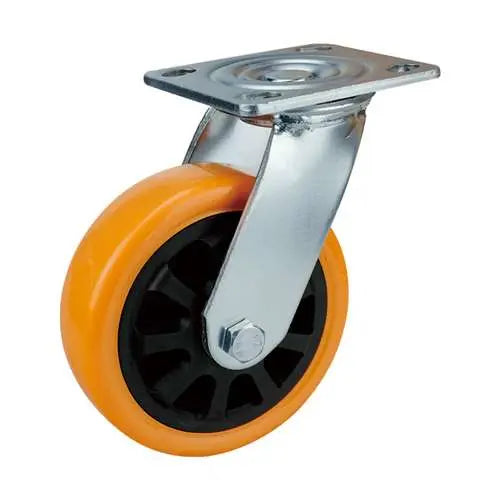

8" Inch Caster 661 lbs Swivel Polyurethane Top Plate

You need 8inch-Swivel-Caster-025 to have your office desk, equipment or even a machine to easily roll them around. This caster is rolled on a wheel that has 200mm diameter/7.874" inch inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 240mm/9.449" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polyurethane tire to roll easily with a core made of Polyurethane. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 661 lb with a Swivel type. Temperature range = -40 to 180 F. Enjoy our 8inch-Swivel-Caster-025, we wish all the best in your project.
