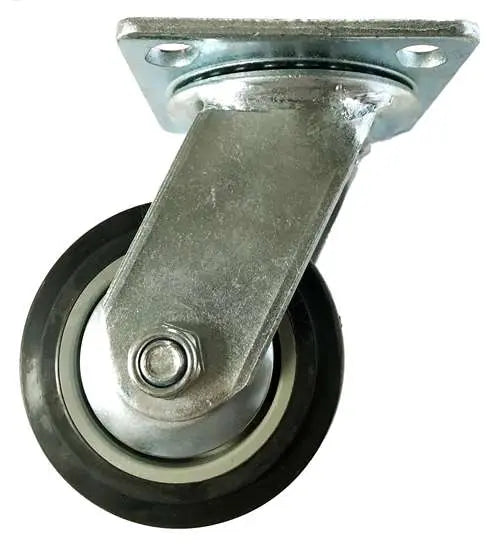

8" Inch Caster 661 lbs Swivel Polyvinyl Chloride Top Plate

8" Inch Caster 661 lbs Swivel Polyvinyl Chloride Top Plate

Item Name: 8inch-Swivel-Caster-008

Wheel Diameter: 200mm

Wheel Width: 50mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 240mm

Overall Height Inch: 9.449"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Double ball beaing

Load Capacity: 661 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Don't think too much, use 8inch-Swivel-Caster-008 to get your DIY move and manuver around. This caster is rolled on a wheel that has 200mm diameter/7.874" inch inches. The thickness of the wheel is 50mm or 1.969" inch. The Caster with the wheel from end to end is 240mm = 9.449" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Rolling with a wheel core material of Polyvinyl Chloride and a Polyvinyl Chloride tire rolled over Double ball beaing. Each caster will carry the load of 661 lb and is Swivel type. Temperature range = -40 to 180 F. Enjoy our 8inch-Swivel-Caster-008, we wish all the best in your project.
