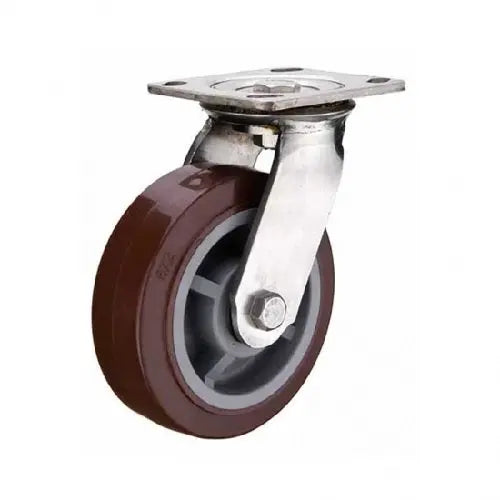

8" Inch Caster 661 lbs Swivel Stainless steel fork and Polyurethane Top Plate

8" Inch Caster 661 lbs Swivel Stainless steel fork and Polyurethane Top Plate

Item Name: 8inch-Swivel-Caster-012

Wheel Diameter: 200mm

Wheel Width: 50mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 240mm

Overall Height Inch: 9.449"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Stainless steel fork and Polyurethane

Tire: Stainless steel fork and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 661 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Don't think too much, use 8inch-Swivel-Caster-012 to get your DIY move and manuver around. This wheel caster has a wheel diameter of 200mm or 7.874" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 240mm = 9.449" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Rolling with a wheel core material of Stainless steel fork and Polyurethane and a Stainless steel fork and Polyurethane tire rolled over Double ball beaing. Each caster will carry the load of 661 lb and is Swivel type. Temperature range = -40 to 180 F. Remember, you will have to buy the 8inch-Swivel-Caster-012 in order to have it :).
