8" Inch Caster 661 lbs Swivel Thermoplastic Rubber Top Plate

8" Inch Caster 661 lbs Swivel Thermoplastic Rubber Top Plate

Regular price $21.59 USD
Regular price Sale price $21.59 USD
Sale Sold out
SKU: 8inch-Swivel-Caster-007

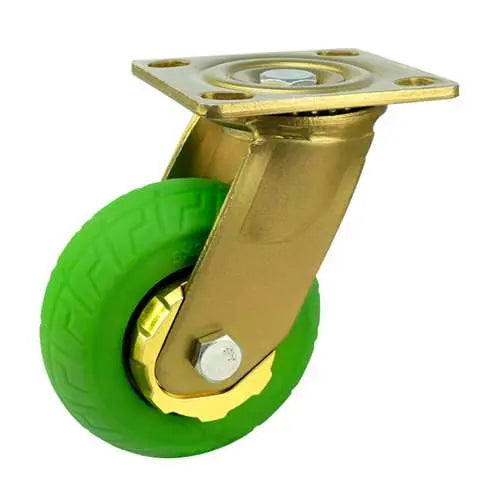

8" Inch Caster 661 lbs Swivel Thermoplastic Rubber Top Plate
  • Item Name: 8inch-Swivel-Caster-007
  • Wheel Diameter: 200mm
  • Wheel Width: 50mm
  • Wheel Diameter: 8" Inch = 200mm
  • Overall Height: 240mm
  • Overall Height Inch: 9.449"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Thermoplastic Rubber
  • Tire: Thermoplastic Rubber
  • Bearing type: Double ball beaing
  • Load Capacity: 661 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Don't think too much, use 8inch-Swivel-Caster-007 to get your DIY move and manuver around. Diameter of the caster wheel is a metric standard 200mm that is equal to 7.874" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 240mm/9.449" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Double ball beaing. Each caster will carry the load of 661 lb and is Swivel type. The temperature range is -40 to 180 F. Buy the 8inch-Swivel-Caster-007 now, just add the quantity to basket and click on Checkout.
