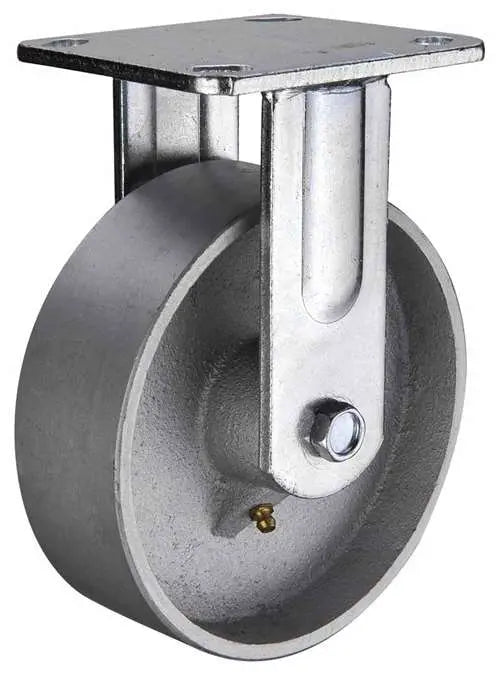

8" Inch Caster 772 lbs Fixed Cast Iron Top Plate

Whatever you are building needed to be on wheels, here come the 8inch-Caster-030. Diameter of the caster wheel is a metric standard 200mm that is equal to 7.874" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 240mm = 9.449" inch. Mounted via a Top Plate that has the size of 115mm x 100mm x 5.5mm and the holes distance of 72mm x 85mm. The caster core is made of Cast Iron and has a Cast Iron tire with a low friction Roller bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 772 lb with a Fixed type. Temperature range = -40 to 180 F. Remember, you will have to buy the 8inch-Caster-030 in order to have it :).
