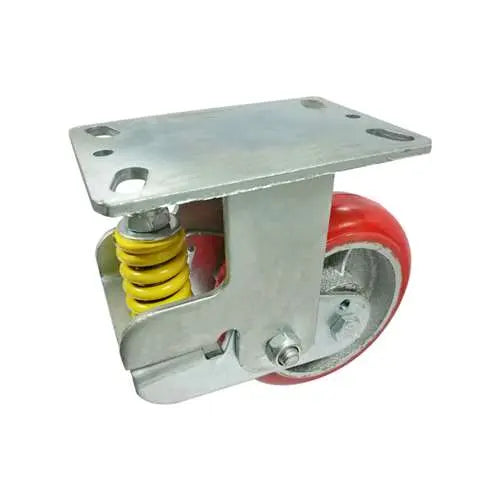

8" Inch Caster 772 lbs Fixed Polyurethane and Cast iron core Top Plate
8" Inch Caster 772 lbs Fixed Polyurethane and Cast iron core Top Plate
You need 8inch-Caster-002 to have your office desk, equipment or even a machine to easily roll them around. Diameter of the caster wheel is a metric standard 200mm that is equal to 7.874" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The overall height of the caster is 265mm or 10.433" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 140mm x 108mm with the holes distance of 105mm x 75mm. The Ball bearing design will enable the Polyurethane and Cast iron core tire to roll easily with a core made of Polyurethane and Cast iron core. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 772 lb with a Fixed type. Last and not least the temperature range = -40 to 180 F. Buy the 8inch-Caster-002 now, just add the quantity to basket and click on Checkout.
