KCW Casters

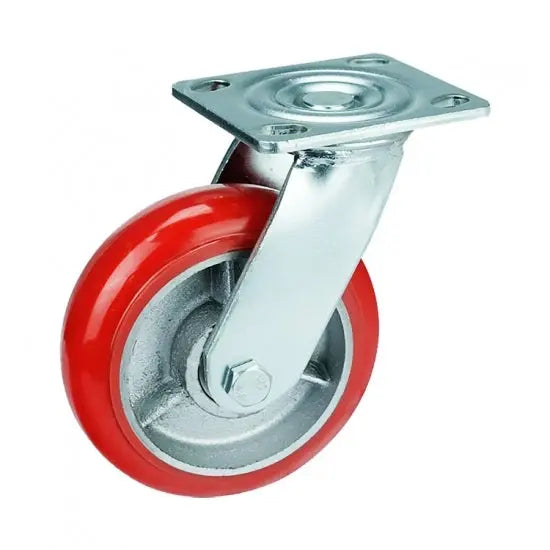

8" Inch Caster 882 lbs Swivel+Locking+Fixed Iron core and Polyurethane Top Plate

8" Inch Caster 882 lbs Swivel+Locking+Fixed Iron core and Polyurethane Top Plate

Regular price $24.23 USD
Regular price Sale price $24.23 USD
Sale Sold out
SKU: 8inch-Lock-Swivel-Caster-019
8" Inch Caster 882 lbs Swivel+Brake+Fixed Iron core and Polyurethane Top Plate
  • Item Name: 8inch-Lock-Swivel-Caster-019
  • Wheel Diameter: 200mm
  • Wheel Width: 50mm
  • Wheel Diameter: 8" Inch = 200mm
  • Overall Height: 243mm
  • Overall Height Inch: 9.567"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Iron core and Polyurethane
  • Tire: Iron core and Polyurethane
  • Bearing type: Double ball beaing
  • Load Capacity: 882 lb
  • Mounting: Swivel+Locking+Fixed
  • Temperature Range: -40 to 180 F

  • Whatever you are building needed to be on wheels, here come the 8inch-Lock-Swivel-Caster-019. This caster is rolled on a wheel that has 200mm diameter/7.874" inch inches. The thickness of the wheel is 50mm or 1.969" inch. The Caster with the wheel from end to end is 243mm = 9.567" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. Low drag was achieved by a Iron core and Polyurethane core on a Iron core and Polyurethane tire spinning freely with a Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 882 lb with a Swivel+Locking+Fixed type. Temperature range = -40 to 180 F. Enjoy our 8inch-Lock-Swivel-Caster-019, we wish all the best in your project.
